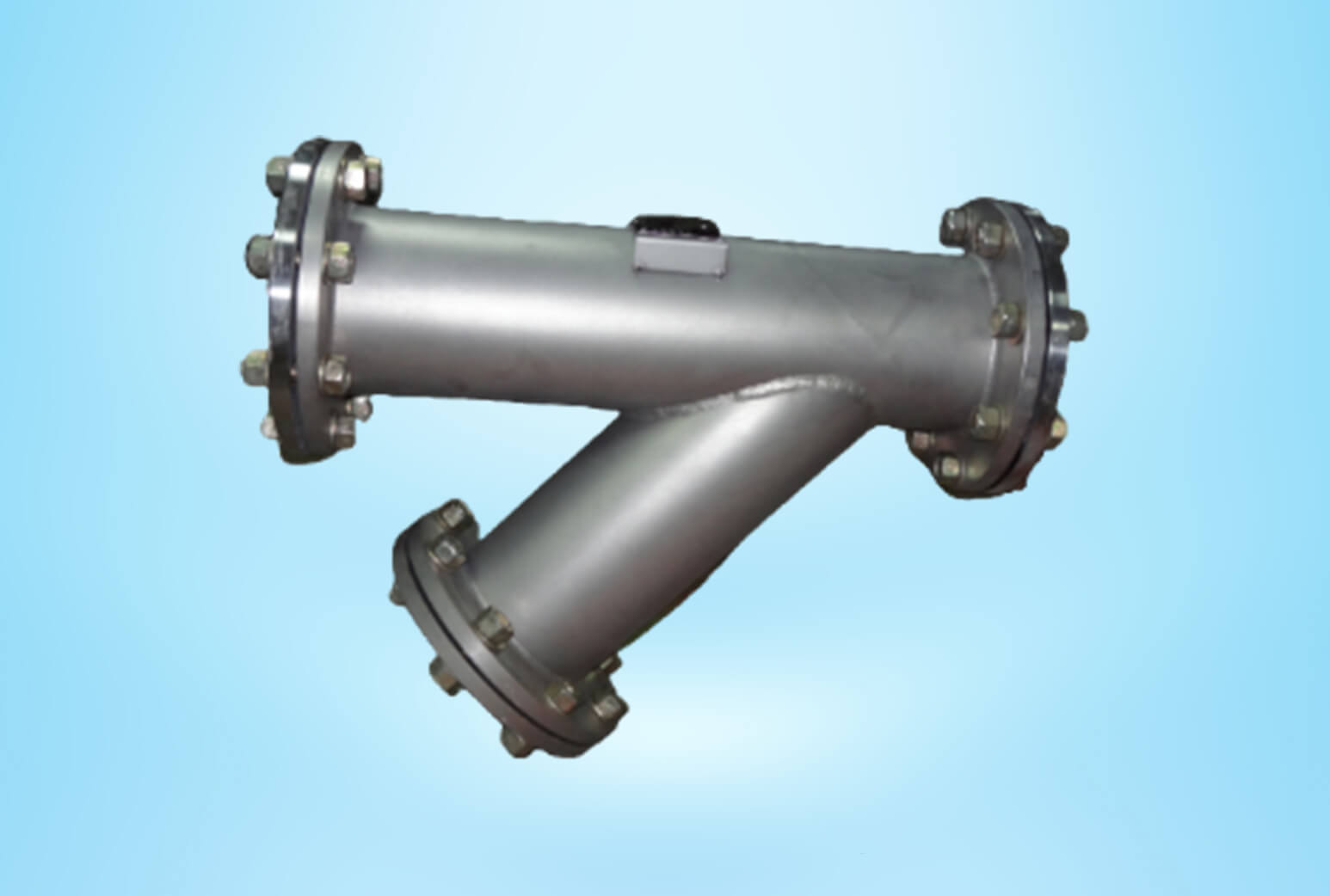

Fabricated Y strainer

Fabricated Y Strainers Manufacturer

As a reputed Fabricated Y Strainers Manufacturer, we specialize in the design and fabrication of industrial-grade Y-type strainers engineered for optimal particle retention and durability. Our Y strainers are built for demanding applications across industries such as petrochemical, water treatment, power generation, food processing, pharmaceuticals, and oil & gas.

With in-house fabrication capabilities and engineering excellence, we provide a wide RANGE OF INDUSTRIAL Y-type STRAINERS & Y-type filters in various configurations, pressure ratings, and material choices to meet your specific process needs.

What is a Fabricated Y Type Strainer?

A Y-type strainer is a mechanical filtration device shaped like the letter "Y", used in pipelines to remove unwanted solids from liquids, gases, or steam. It prevents contamination and equipment damage by filtering out rust, scale, pipe debris, and particulates before they reach sensitive components such as pumps, valves, or heat exchangers.

Our fabricated Y strainers are custom-made from plates and pipes, allowing flexibility in material selection, dimensions, and special configurations. This makes them ideal for non-standard pipeline sizes or aggressive environments.

Y TYPE STRAINERS MATERIAL OF CONSTRUCTION :

We manufacture strainers using high-quality raw materials that ensure mechanical strength, corrosion resistance, and temperature tolerance. Our Y TYPE STRAINERS MATERIAL OF CONSTRUCTION options include :

• Carbon Steel (ASTM A106, A105, A516 Gr. 70) : For general industrial use
• Stainless Steel (SS304, SS316, SS316L) : For corrosion resistance in chemical, pharma & food industries
• Alloy Steel (Chrome-Moly, Duplex, Super Duplex) : For high-temperature, high-pressure applications
• Cast Iron / Ductile Iron : For water supply, HVAC, and fire-fighting lines
• PVC / Polypropylene / PTFE-lined : For corrosive chemicals and acids
• Brass / Bronze : For marine and potable water applications

All materials are certified and traceable as per international quality standards.

Range of Industrial Y Type Strainers & Y Type Filters :

Our diverse product lineup includes :

• Fabricated Y Strainers (Plate type / Pipe type)
• Flanged End Y Type Filters (ANSI/DIN/BS)
• Threaded End Y Strainers (BSP/NPT)
• Socket Weld & Butt Weld Y Strainers
• High-Pressure Y Type Filters (up to 250 bar)
• Custom Jacketed Y Strainers for Steam or Hot Oil Applications
• Blow-Off Type Y Filters with Drain Plug or Valve

Each strainer can be designed to handle specific flow rates, particle retention, and service conditions, including vertical or horizontal installation.

Technical Specifications – Fabricated Y Type Strainers

Key Features of Y-type strainers :

• Custom-fabricated design for higher flow and pressure ratings
• Robust construction using certified materials
• Wide selection of mesh sizes and screen configurations
• Easy-to-clean strainer basket with removable cover
• Suitable for both horizontal and vertical flow installations
• Compact Y-shape ensures minimum pressure loss
• Back-flushing or blow-down option for self-cleaning variants
• Low maintenance, high dirt-holding capacity

Key Features of Y-type strainers :

Our Range of Industrial Y-type strainers & Y-type filters finds use in the following industries:

• Water Treatment Plants : Raw water, RO pre-filtration, cooling towers
• Oil & Gas / Petrochemicals : Fuel, crude, lube oil, condensate pipelines
• Chemical Process Industry : Acid, alkali, solvents, brine, resins
• Power Plants / Boilers : Steam lines, condensate polishing, turbine protection
• Food & Beverage : Juice, wine, dairy processing lines
• Marine & Offshore : Ballast water, seawater cooling, fire suppression
• HVAC & Fire Protection : Chilled water and sprinkler systems
• Pulp & Paper : Black liquor and process water filtration

Benefits of Fabricated Y Strainers :

• Reliable Filtration : Prevents clogging and extends equipment life
• Flexible Design : Custom-built to suit project-specific requirements
• Operational Efficiency : Reduces system downtime and energy loss
• Cost Savings : Protects costly components from damage and wear
• Compliance : Designed as per ASME, ANSI, or DIN standards
• Global Delivery : On-time dispatch and logistics for domestic and international clients

As a specialist Fabricated Y Strainers Manufacturer, we bring engineering expertise, modern fabrication infrastructure, and a strong commitment to quality. Whether it’s a standard model or a complex engineered-to-order solution, we ensure every Y strainer passes strict quality and pressure testing protocols.

We also offer complete technical support, 2D/3D drawings for approval, and prompt after-sales service.
