Looking for advanced filtration solutions for your water or liquid processing system? Our Ultra Filtration Membrane Filters are designed for precise separation of suspended solids, bacteria, viruses, and other contaminants—delivering crystal-clear output with consistent efficiency. These filters serve as a critical pre-treatment or final filtration stage in many industries, offering high flow rates and low fouling characteristics.
As a trusted supplier of ultrafiltration membrane filters, we offer a range of configurations and pore sizes tailored to specific industry requirements. Our membranes operate under low pressure and are energy-efficient, making them an ideal solution for applications that demand high purity and reliable performance.

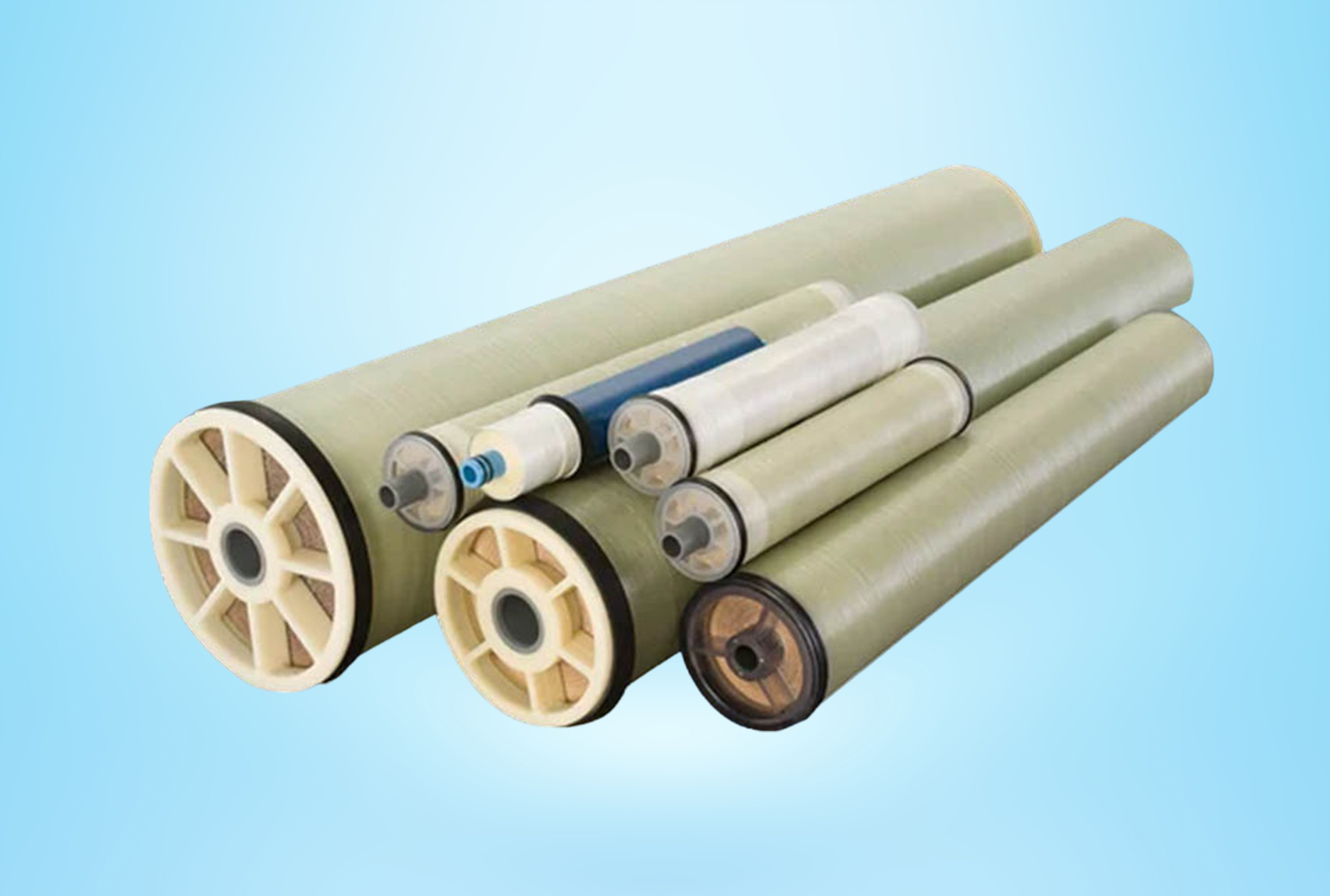

Ultrafiltration membrane filters are semi-permeable membranes with pore sizes typically ranging from 0.01 to 0.1 microns. They effectively remove suspended solids, colloids, bacteria, endotoxins, and large molecular-weight particles from fluids, without affecting dissolved salts or minerals.
These filters work on a cross-flow filtration principle, which minimizes clogging and extends the service life of the membrane. Water or fluid is passed tangentially across the surface of the membrane, allowing only particles smaller than the pore size to pass through while larger contaminants are retained and flushed away.
| Parameter | Specification |
|---|---|
| Membrane Type | Ultrafiltration (UF) |
| Pore Size | 0.01 - 0.1 micron |
| Membrane Material | PES, PVDF, PAN |
| pH Range | 3 - 10 (cleaning: 2 - 11) |
| Recovery Rate | 85 - 95% depending on feed water quality |
| Flow Rate | 500 - 10,000+ LPH (custom models available) |
| Mounting Options | Vertical / Horizontal skids, Modular housings |
| End Connections | Clamp, Threaded, Flanged |
